Steel shop drawings are detailed depictions of structural elements, components, and accessories to be fabricated and installed on-site. Typically developed from 2D architectural and structural plans, they are presented as 3D models for field application.
Each shop drawing typically includes:
- 📐 Dimensions and special instructions including connection details.
- 📘 Applicable fabrication standards.
- 🏗️ Installation and erection information.
- 📍 Dimensions requiring on-site verification.
- ✅ Comparison to construction documents for architect/engineer approval.
- ✏️ Notes on changes from original documents for engineer/architect validation.

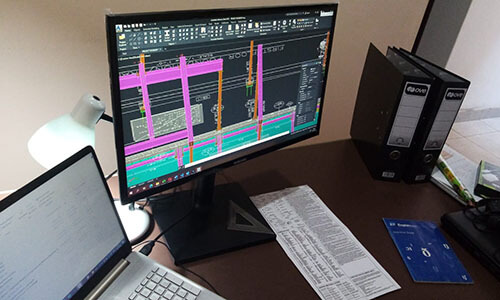

The steel shop drawing service is offered by KMBJ Structural Steel, Inc. throughout the state of California. Most of the process is handled remotely via internet with printed plans delivered or available for FOB. Our clients include engineers, architects, contractors, and property owners.
This service is often integrated with our steel fabrication and erection processes and is typically included in proposal budgets and project timelines.
Terms of service: Shop drawings will be developed based on client-provided plans and approved prior to fabrication.
